Unreal RPG Devlog Part 1 - State Tree based AI | Unreal

How I Built the Combat & AI Systems

Hey! This is a quick breakdown of how combat and AI work in DungeonRPG. I’ve been working on this solo for a while now, and these two systems are probably what I’ve spent the most time on. Figured I’d share how it all fits together.

The Problems I Ran Into

Early on, I hit two walls:

1. Physics-based hit detection was a mess. Weapon colliders would clip through enemies or hit at weird times. Super inconsistent.
2. Multiple enemies attacking at once was chaos. With 4+ enemies, fights just became visual noise with overlapping attacks.

My fix: animation-driven hit detection + a token system to coordinate AI attacks.

Animation-Driven Combat

Instead of physics collisions, hit detection is defined directly in the animation files using Strike Window Notify States.

How It Works

Animation Timeline
├─ Wind-up frames (no hit detection)
├─ ══ StrikeWindowNotifyState ══  ← Hit detection active
│     └─ Capsule traces each frame
└─ Recovery frames (no hit detection)

Each StrikeWindowNotifyState holds an array of FStrikeColliderData:

struct FStrikeColliderData {
    FName SocketName;        // Bone to attach to (e.g., "weapon_tip")
    FTransform Offset;       // Local offset from socket
    float Radius;            // Capsule radius
    float HalfHeight;        // Capsule half-height
    FVector AttackNormal;    // Direction of the attack force
};

Every frame during the notify window, capsule traces fire from those sockets. When something overlaps, a precise sweep gets the exact hit location, then it’s passed to the target’s CombatComponent.

Why This Works Well

• Full control: Hit windows are placed exactly where they make sense visually in the animation
• Predictable: No physics jitter or missed collisions
• Flexible: Sweeping arcs, stabs, multi-hit attacks—all use the same system
• No double hits: GUID-based attack handles track what’s already been hit

The Combat Component

Anything that can fight has a UCombatComponent. When an attack connects, it handles a few things:

Block Detection

Pretty simple dot product check—if you’re facing the attacker and blocking, it counts:

// Blocking if facing the attacker (dot product < -0.8)
if (HasTag("rpg.combat.state.block.active")) {
    float Facing = GetForwardVector().Dot(HitDirection);
    if (Facing < -0.8f) {
        SendGameplayEvent("rpg.combat.gevent.block");
        return; // Blocked!
    }
}

Damage

All damage goes through Unreal’s Gameplay Ability System (GAS). A TakeDamageEffect gameplay effect handles the actual health reduction.

Poise & Stagger

This is where it gets fun. Every hit also deals poise damage. When poise gets low enough, enemies stagger or go down:

It creates a nice rhythm—you can chip away at poise to create openings, or go for raw damage. Feels good in practice.

AI: State Trees & Utility Scoring

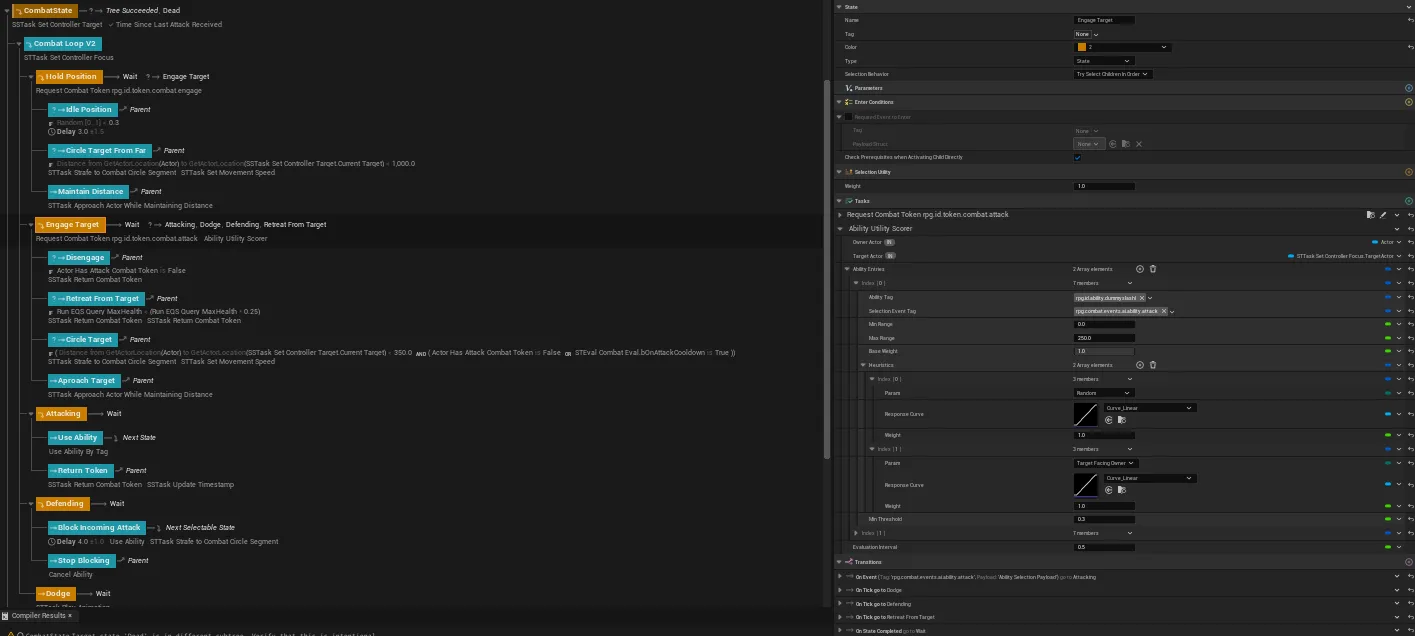

For AI, I’m using Unreal’s State Tree system with custom tasks. The basic loop looks like this:

Evaluate Abilities → Pick Best One → Move Into Position → Attack → Repeat

Picking Abilities

Each enemy has a list of abilities it can use. Each ability has some heuristics attached:

struct FAbilityUtilityEntry {
    FGameplayTag AbilityTag;      // Which ability
    float MinRange, MaxRange;      // Valid engagement distance
    float BaseWeight;              // Overall priority
    TArray<FAbilityUtilityHeuristic> Heuristics;
};

The heuristics score abilities based on the situation:

• Distance to target — Some attacks work better at certain ranges
• Health percentage — Low health might favor defensive moves
• Target facing — Backstab-type attacks score higher when behind the player
• Random factor — Keeps things unpredictable

Highest score wins, then an event fires to kick off the State Tree transition.

The Token System

This is probably my favorite part: attack tokens.

There’s a pool of tokens (say, 2 melee attack tokens). Enemies have to grab a token before they can attack. When multiple enemies want to swing:

1. Each request gets scored based on distance, line-of-sight, how long they’ve been waiting
2. Highest score gets the token
3. If all tokens are taken, a much higher score can steal one from another enemy
4. Tokens get returned when the attack finishes

// Simplified version
if (TokenManager->RequestToken(MeleeTokenTag)) {
    // Got it - attack!
    ASC->TryActivateAbility(AttackAbilityHandle);
}

// After the attack
TokenManager->ReturnToken(MeleeTokenTag);

With 2 tokens and 5 enemies, you end up facing 1-2 attacks at a time instead of getting mobbed. Way more readable fights.

Movement

Enemies don’t just stand around waiting for tokens. Two tasks keep them moving:

Approach While Maintaining Distance

• Stays at a preferred range—not too close, not too far
• Uses pathfinding so they don’t walk through walls

Strafe to Combat Circle Segment

• Divides the space around the player into sectors (like pizza slices)
• Enemies claim sectors so they don’t stack on top of each other
• Smooth orbiting movement that keeps them in front of you

The Full Picture

Here’s what happens when an enemy decides to attack:

1. AbilityUtilityScorer looks at all options
2. Best ability picked → event fires to State Tree
3. Enemy requests a combat token
4. Token granted → moves into range
5. FSTTask_UseAbility triggers the GAS ability
6. Animation plays → StrikeWindowNotifyState goes active
7. Capsule traces check for player collision
8. CombatComponent handles the hit:
   - Is the player blocking?
   - Apply health damage
   - Apply poise damage
   - Play the right reaction (flinch/stagger/knockdown)
9. Ability ends → token goes back to the pool
10. Back to step 1

What I Learned

A few things that stuck with me:

1. Animation-driven hit detection is the way. Putting timing control in the animation files just makes sense. Way easier to tweak than physics nonsense.

2. Tokens are simple but effective. Such a small system but it completely fixes the “getting mobbed” problem.

3. GAS is worth learning. Took a while to wrap my head around, but now damage, effects, cooldowns, tags—it all just works together.

4. State Trees are great. Custom tasks keep everything modular. Easy to debug, easy to extend.

What’s Next

Currently working on:

• Ranged attacks (separate token pool so archers don’t compete with melee)
• Environmental hazards the AI can use against you
• Boss fights with phase-based State Trees

If you have questions or just want to chat about this stuff, feel free to reach out!

DungeonRPG is built with Unreal Engine 5.5. Everything’s in C++ with Blueprint exposure for quick iteration.
